MM-12MR-280LED-FX-A is a 2.8-inch Touchscreen PLC all-in-one machine with an LED screen, compact in size and powerful in function.

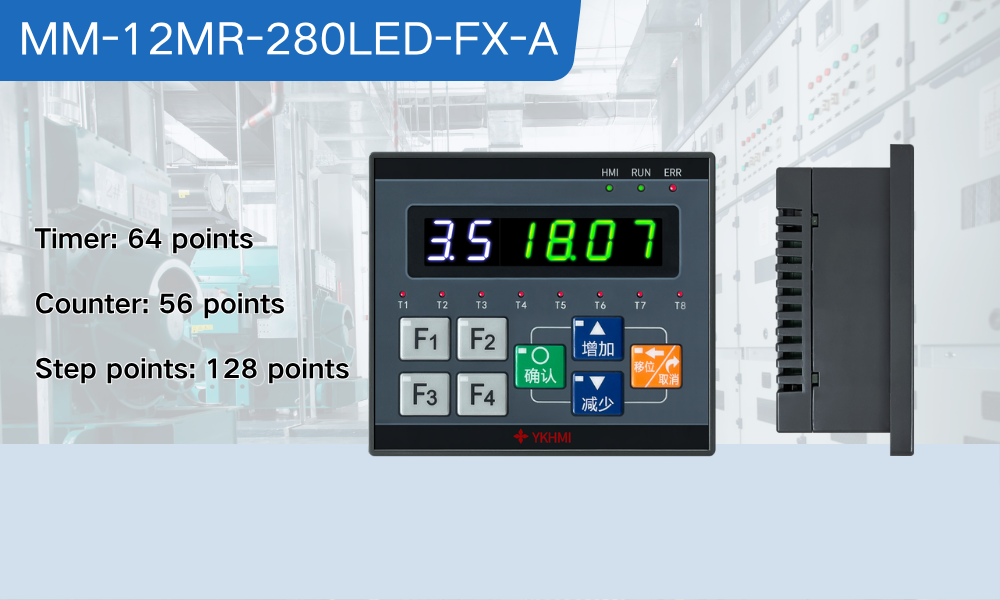

Timer: 64 points; Counter: 56 points, Step points: 128 points

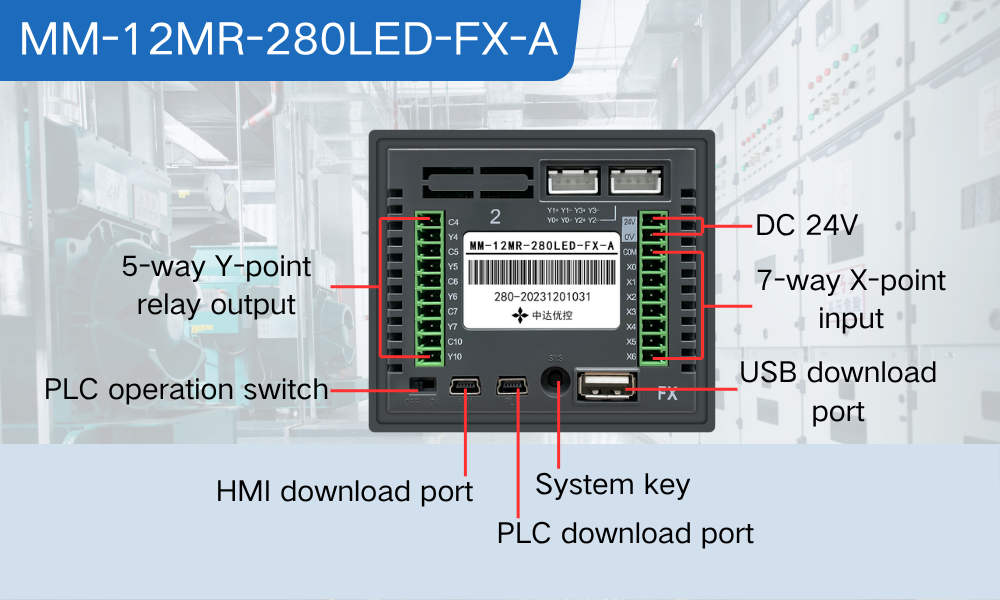

It features a DC 24V power supply, 7 X-point inputs, and 5 Y-point relay outputs.
It supports USB download, exporting historical data, real-time clock, and D-area power-off retention.

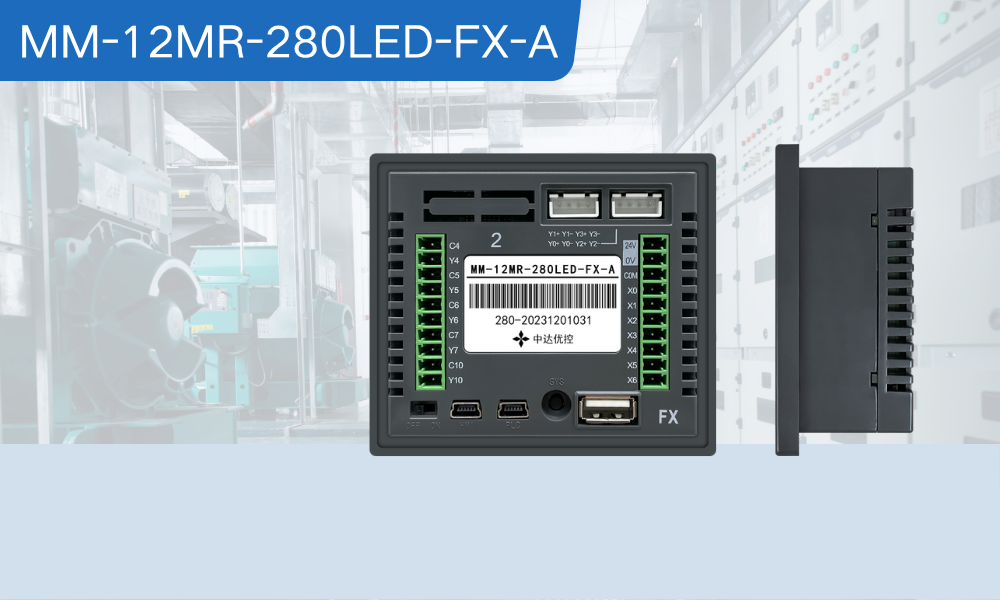

The device is compact, equipped with PLC operation switch, HMI/PLC download port, and system keys.
It is a product with high integration, comprehensive functions, and cost-effective applicability.
Program Download: Mini USB Interface
LCD size: 0.4 inches
Timer: 64 points Counter: 56 points Step points: 128 points
Cut-out Size: 79mm*69mm
Body dimensions：88mm*78mm*38mm
Communication Port: Internal TTL
Software Download:
Driver Download:
AT32_VCOM_USB_Driver [05AC-6666].zip
